Vitrifrigo DIY Kit 210/70 S7 + ND50ORV | 210L Fridge or 70L Freezer


Vitrifrigo DIY Kit 210/70 S7 + ND50ORV | 210L Fridge or 70L Freezer



This Vitrifrigo DIY Kit is made up of the S7 box evaporator, ND50ORV Cooling Unit, and digital thermostat.

This Kit is suitable for a 210L Fridge or 70L Freezer.

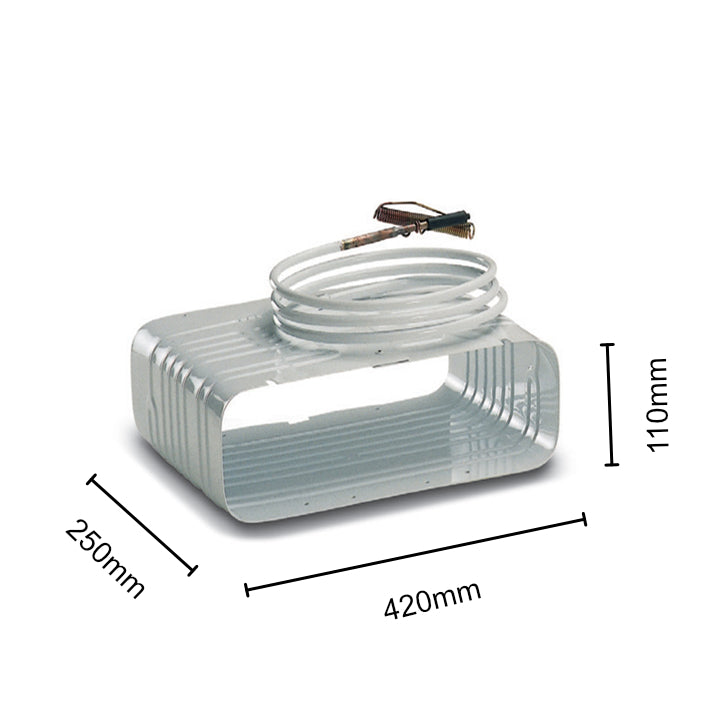

S7 Box Evaporator

Cooling systems with boxed evaporators are recommended for all installations where a freezer compartment is required, leaving the remainder of the box as refrigerator space. Boxed evaporators with bottom piece and lids can be placed horizontally or vertically according to requirements and available space.

Width: 420mm

Height: 110mm

Depth: 250mm

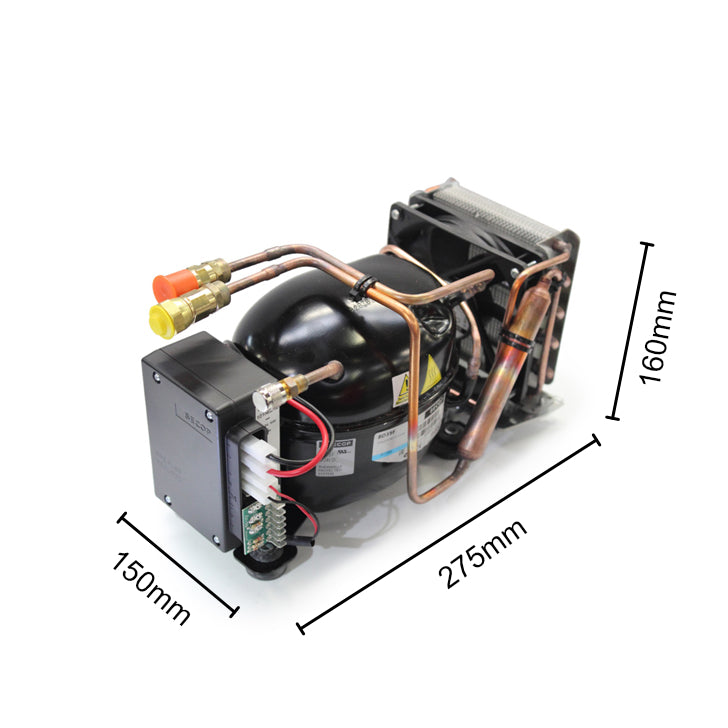

ND50ORV Cooling Unit

Width: 275mm

Height: 160mm

Depth: 150mm

Digital Thermostat



DIY Tips & Tricks

  • A well insulted box with minimum 50mm wall thickness is recommended.
  • Top loading configurations enable maximum cool to be retained when opened and closed frequently.
  • The door must be well sealed to prevent the evaporator plate icing up.
  • The compressor needs to be well ventilated for optimum performance.
