Vitrifrigo DIY Kit 120/40 PT3 + ND35ORV | 120L Fridge or 40L Freezer


Vitrifrigo DIY Kit 120/40 PT3 + ND35ORV | 120L Fridge or 40L Freezer

 PLEASE CHECK STOCK BEFORE ORDERING 1300 668 293

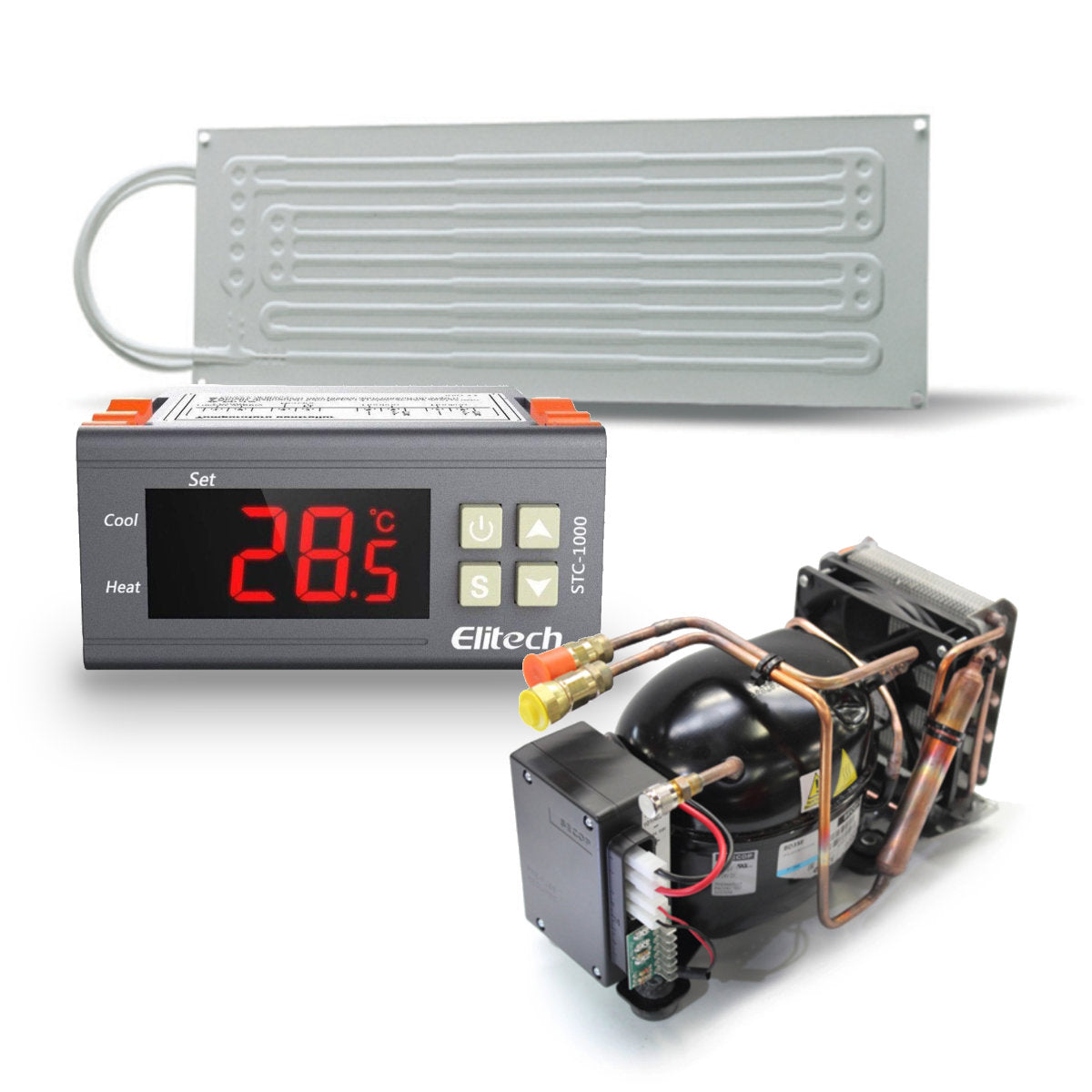

This Vitrifrigo DIY Kit is made up of the PT3 flat evaporator plate, ND35ORV Cooling Unit, and digital thermostat.

This Kit is suitable for a 120L Fridge or 40L Freezer.

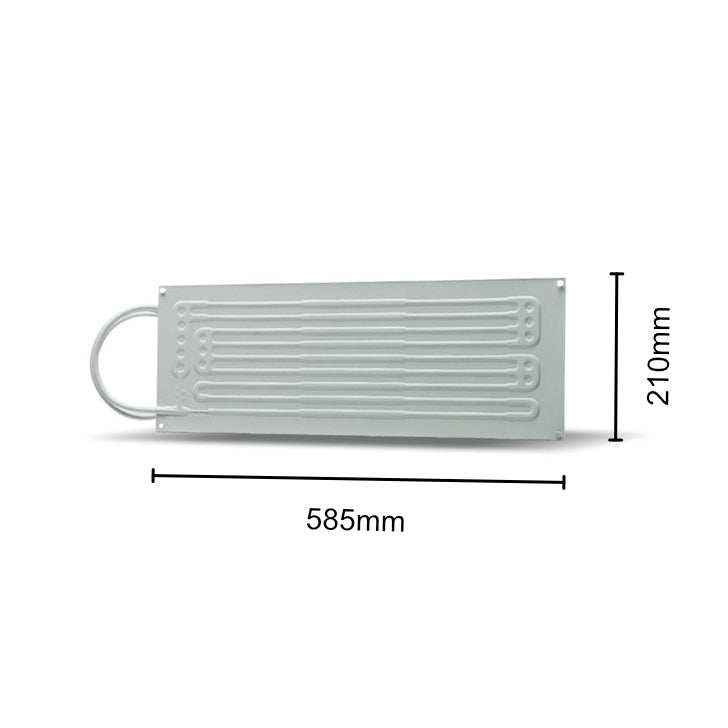

PT3 Flat Evaporator

Flat evaporators can be easily installed and provide a multitude of different cooling requirements, due to the ability to bend them to fit into the refrigerated compartment. When installing, always use the stand-offs and provided holes in the plate evaporator.

Width: 585mm

Height: 210mm

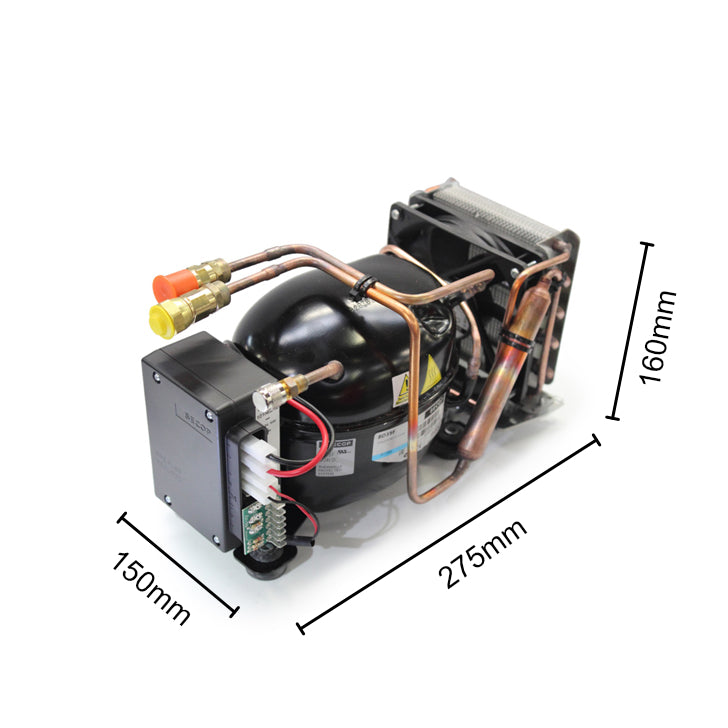

ND35ORV Cooling Unit

Width: 275mm

Height: 160mm

Depth: 150mm

Digital Thermostat



DIY Tips & Tricks

  • A well insulted box with minimum 50mm wall thickness is recommended.
  • Top loading configurations enable maximum cool to be retained when opened and closed frequently.
  • The door must be well sealed to prevent the evaporator plate icing up.
  • The compressor needs to be well ventilated for optimum performance.
