Vitrifrigo DIY Kit 160/55 PT15 + ND50ORV | 160L Fridge or 55L Freezer


Vitrifrigo DIY Kit 160/55 PT15 + ND50ORV | 160L Fridge or 55L Freezer

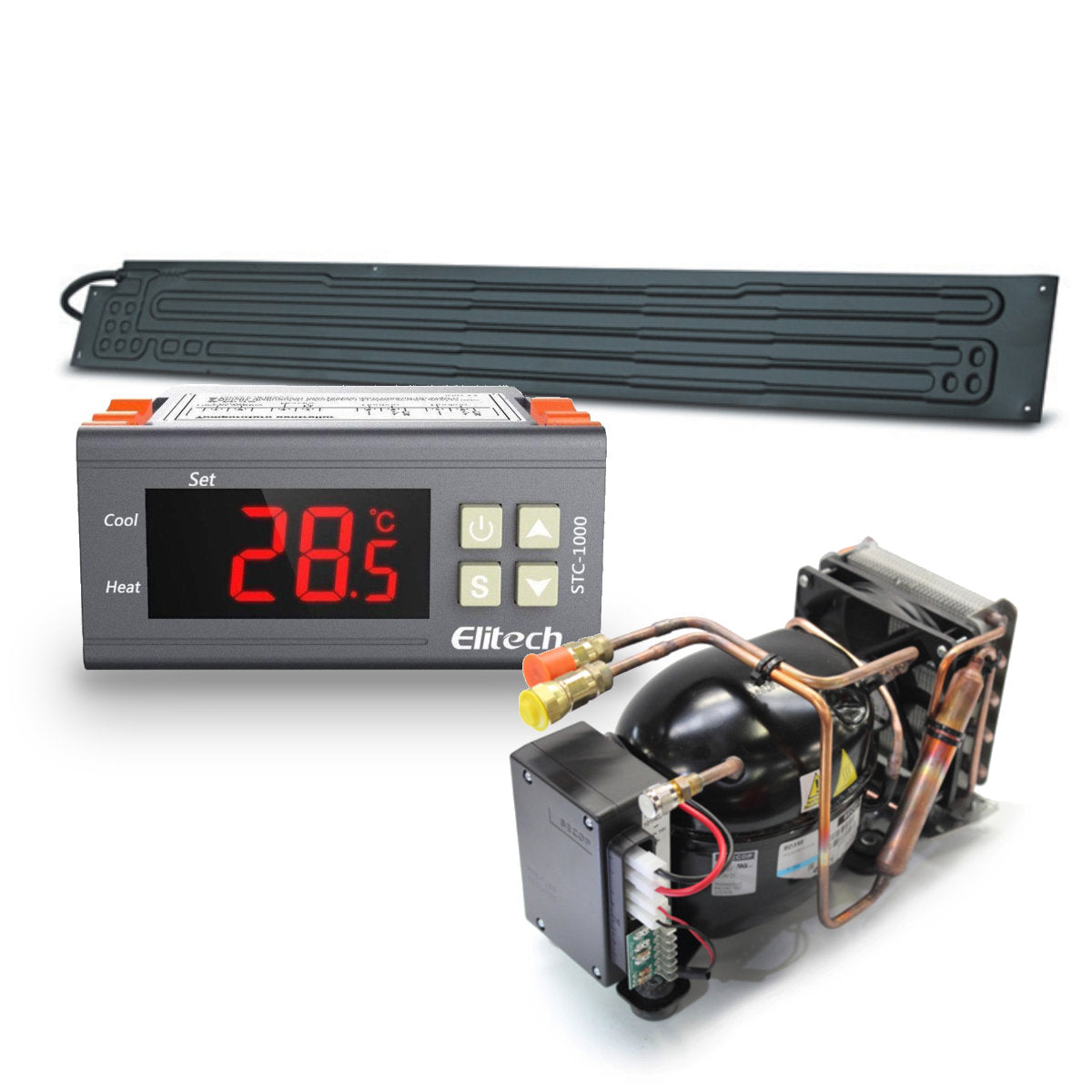

This Vitrifrigo DIY Kit is made up of the PT15 flat evaporator plate, ND50ORV Cooling Unit, and digital thermostat.

This Kit is suitable for a 160L Fridge or 55L Freezer.

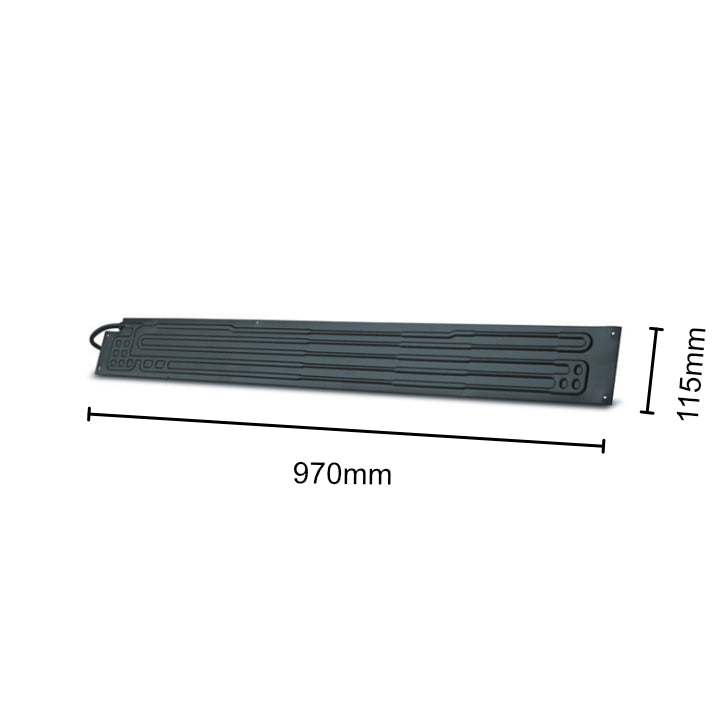

PT15 Flat Evaporator

Flat evaporators can be easily installed and provide a multitude of different cooling requirements, due to the ability to bend them to fit into the refrigerated compartment. When installing, always use the stand-offs and provided holes in the plate evaporator.

Width: 970mm

Height: 115mm

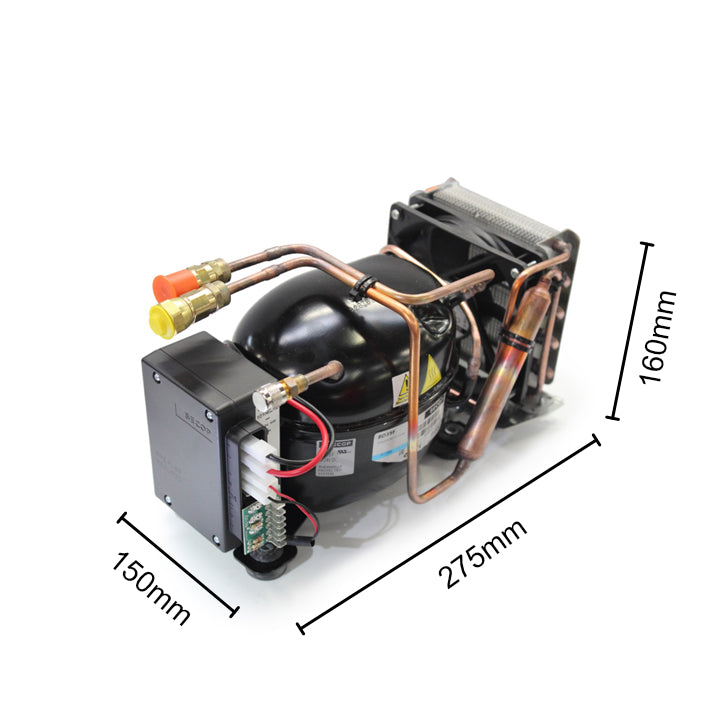

ND50ORV Cooling Unit

Width: 275mm

Height: 160mm

Depth: 150mm

Digital Thermostat



DIY Tips & Tricks

  • A well insulted box with minimum 50mm wall thickness is recommended.
  • Top loading configurations enable maximum cool to be retained when opened and closed frequently.
  • The door must be well sealed to prevent the evaporator plate icing up.
  • The compressor needs to be well ventilated for optimum performance.
