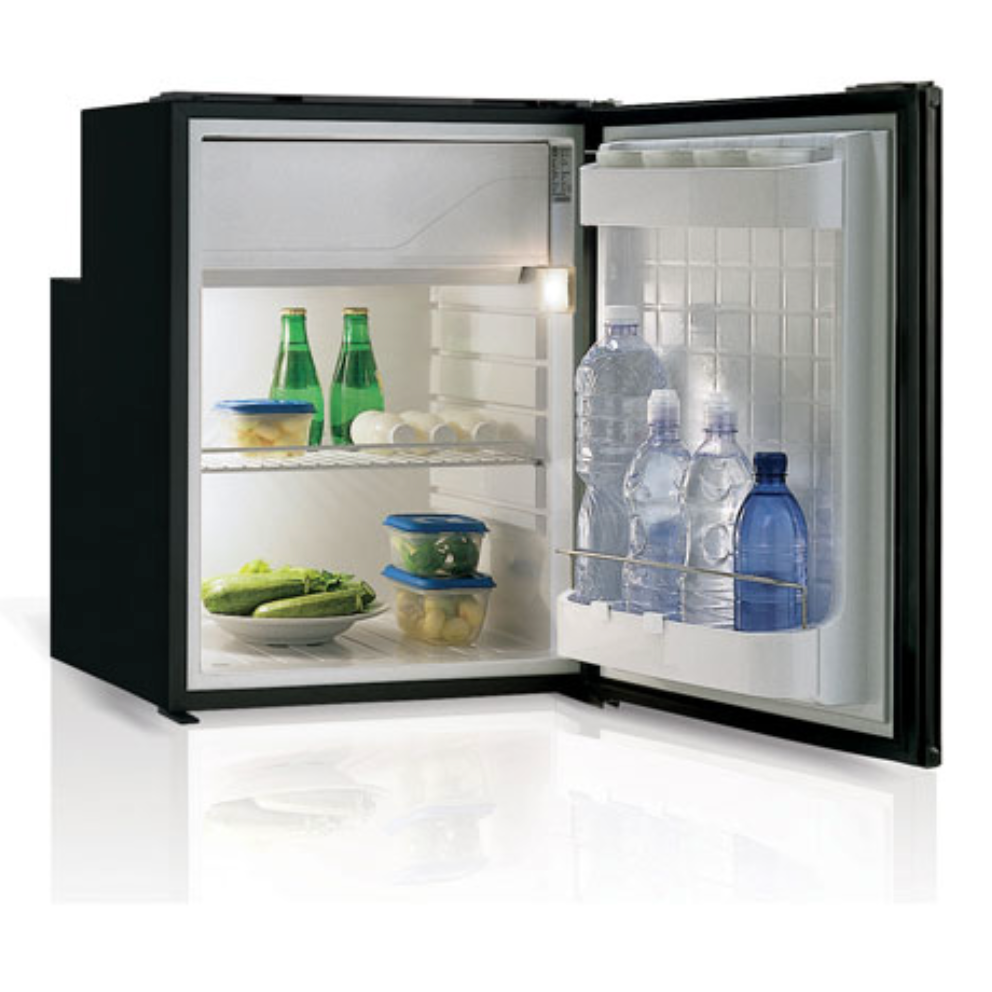

Vitrifrigo -C90i (internal cooling unit)

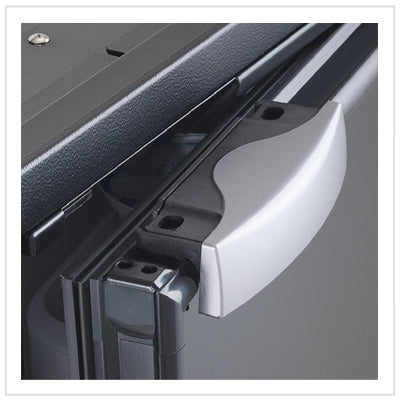

The new Airlock closure system has been designed to allow an easier access for the end user and integrate different features in order to offer an innovative product, extremely user-friendly.
- Standard equipment: 12/24Vdc without quick couplings

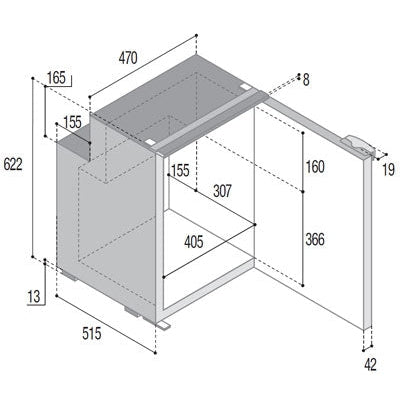

- Width mm: 470
- Height mm: 622
- Depth mm: 557
4 innovative solutions:
Positive door closure- to prevent unwanted openings
Unique double purpose mounting flange (optional) - for both partial built-in (door outside) or total built-in (door inside)
Fast reversible opening- thanks to its smart design, it's now extremely quick and easy to operate
Integrated "vent position" system- to keep the fridge door ajar, preventing the formation of unpleasant odors and mold when not in use.

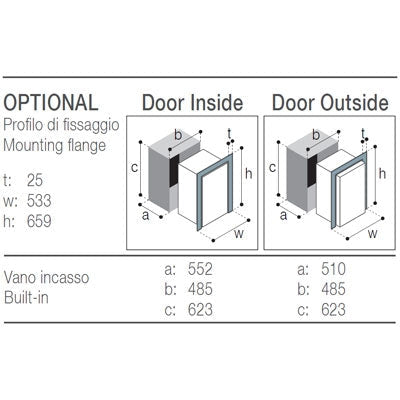

Door Inside mounting flange
Door Outside mounting flange
The new refrigerator/freezer series is available in two brand new colors, very popular and elegant at the same time.
Two available versions:
Light grey - with bright tones of pearl grey
Black, with an emphasis on the contrasting colors.
oor panel finish. Two graphic interpretations that aim to enhance the design, shapes and textures of the materials used, to meet the different needs in terms of image and surroundings of the refrigerator.
Version without mounting flange (standard)
"Light grey" version with Door Inside mounting flange
"Black" version with Door Outside mounting flange
Features & Plus
The optional flange can be added to the standard equipment

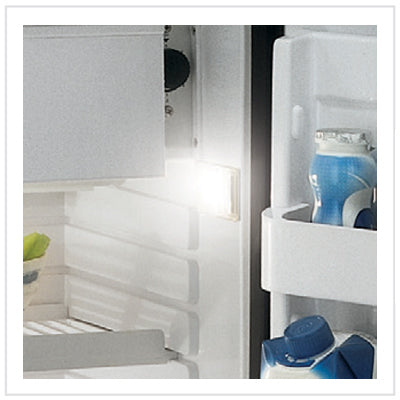

High intensity new LED lighting system

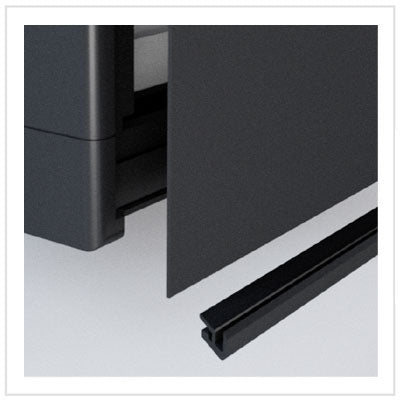

Panel customization is now easier with the new mounting flanges
|D Power (Optional)
12/24Vdc - 100-240Vac 50/60Hz dual electronic control
|Total Volume It
Freezer Volume It
|Net Weight kg
12/24Vdc (also available with dual electronic box 12/24Vdc - 100-240Vac 50/60Hz)
|Overall Width mm
|Overall Height mm
|Overall Depth mm
|Also available in "fridge only version (without freezer compartment)
