Nova Kool R1200 12-24 Volts - 33L Single Door Marine Fridge - SS Frame and SS Look Door Panel - Suitable for Boats, Caravans, Motorhomes and RVs (R1200)


Nova Kool R1200 12-24 Volts - 33L Single Door Marine Fridge - SS Frame and SS Look Door Panel - Suitable for Boats, Caravans, Motorhomes and RVs (R1200)

Nova Kool  - 33 Litre Fridge (R1200DC)

Single Door with Stainless Steel Frame (Moveable) and Formica Brushed Stainless Steel Look Door Panel

All Fridge - No Freezer Compartment with Genuine Danfoss BD35F Compressor

Cut Out Dimensions: 628 H X 355 W x 368* to 406* D (mm)

We can ship Australia wide - ask us for a quote!

The R1200 is designed to replace some common Ice machine cut outs.

Cut-out dimensions suit replacement of many common ice makers including the Raritan 85 & 85E, Uline BI-95 BTP ice makers etc. This unit does not make ice, it is a replacement where the ice machine is no longer required but more beverage space is needed. The R1200 is designed to work as a beverage refrigerator, and will hold bottles of wine laying down. With no freezer compartment, the space is maximised as all refrigerator.

The frame is brushed stainless, and the flange is movable to allow for shallower depths. If you have lots of room behind, you can have a flush door mount. If depth is at a premium, the flange will move back and the door will no longer be flush. This unit is front ventilating, so no relief holes need to be cut out of your enclosure. When the compressor is running, the R1200 draws only 2.4 amps @ 12 Volts DC - less than 0.5 amps on the 120VAC option. All Nova Kool Refrigerators and Freezers are equipped with a highly efficient variable speed Danfoss BD series compressor that is designed to run even while you are listed at a 30° angle. Average power use will vary depending on ambient temperature and how often the door is opened etc. but you can expect the R1200 to use less than 25 amp hours per day at 30C ambient temperature.

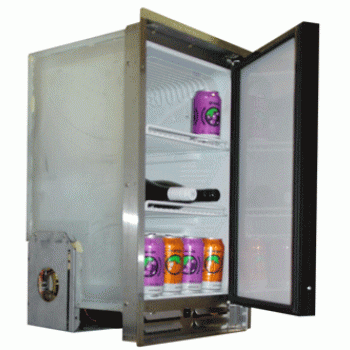

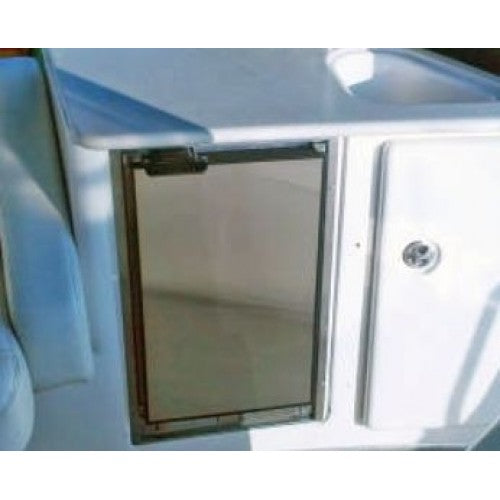

*This model has an adjustable stainless steel flange included. The flange can be moved to allow for shallow cut-outs or left flush as shown in the images to left.

 Volume:

  • 33 Liters Total Internal Volume
  • 33 litres of all fridge space (no freezer area)

Cut Out Dimensions:

  • 628 mm (H) X 355 mm (W) x 368* mm to 406* mm (D)
  • *This model has an adjustable stainless steel flange included. The flange can be moved to allow for shallow cut-outs or left flush as shown in the images to left.

Features:

  • Highly efficient variable speed Danfoss BD Series compressor (fan included) that is designed to run well even at very high ambient temperatures and at angles up to 30° off level.
  • Supplied standard with moveable Stainless Steel Frame and Formica Brushed Stainless Steel look door panel
  • Door swing is right hand as standard but this can be changed prior to shipping or you can change this easily yourself.
  • Positive latch system
  • Storage for tall bottles Reversible door swing
  • Replaceable door panels for a custom finish to your interior
  • Backed with Nova*Kool's Easy 2 Year Warranty Program on all components
  • Environmentally sound 134a refrigerant
  • CFC free urethane foam insulation in cabinet and doors
  • Magnetic door gaskets for positive seal
  • Stainless fasteners & hinges used throughout
  • Maintenance friendly & efficient static condenser
  • Low battery protection to help prevent full discharge of batteries
  • Strongest mounting flanges in the industry - Stainless Steel.
  • Made in Canada
  • All Nova Kool units can add the AC/DC Module as an optional extra if required
  • Compressor Fan - optional (see below)
  • Interior Light - n/a
Options:
  • Standard with Right Hand Hinge Configuration. Left Hand Hinge available on request at no extra charge. The hinge side is user configurable, however, let us know your preference at the time of order and we can have the change made at factory prior to shipping/pick-up.


Specifications

Volume 33 liters (1.2 cu.ft.) volume
33 total litres internal Volume: All fridge space, no freezer box

Cut Out Dimensions 628 mm Height
355 mm Width

368 to 406 mm Depth (flange is adjustable, cut-out depth is measured from the back face of the mounting flange)

Overall dimensions (Including flange)
648 mm Height
384 mm Width

416 mm Depth (including door and latch handle)
