Nova Kool F5819DC 12 -24 Volt 162 Litre Freezer - SS Door and Frame - Suitable for Boats-Caravans-Motorhomes and RVs (F5810DC)


Nova Kool F5819DC 12 -24 Volt 162 Litre Freezer - SS Door and Frame - Suitable for Boats-Caravans-Motorhomes and RVs (F5810DC)

Nova Kool F5819DC - 162 Litre Freezer

12-24 Volt Single Brushed Stainless Steel Door Panel and Stainless Steel Frame

 Suitable for Boats-Caravans-Motorhomes and RV's (F5810DC)

We ship Australia wide - Ask us for a quote!

Nova Kool Freezers are equipped with a highly efficient variable speed Danfoss BD series compressor (fan included) that is designed to run well even at very high ambient temperatures and At angles up to 30° off level. Power draw is approximately 5.2 amps when running: average power use will vary depending on ambient temp. how often the door is opened etc. but you can expect ~ 60 amp hours per day at 30°C ambient temperature.

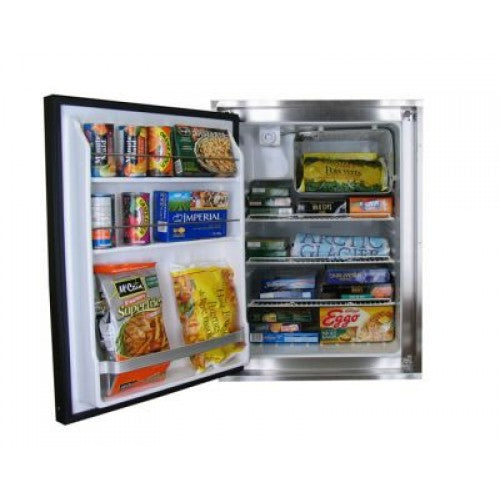

NB: Images depict an F5819 with optional LEFT hand door swing. The standard F5810 comes with a right hand door swing (hinges on the right side). If left hand door swing is required please specify this at time of order.



Features:

  • Positive latch system
  • Shelves are a powder coated wire for durability
  • Reversible door swing
  • Replaceable door panels for a custom finish to your interior
  • Backed with Nova*Kool's Easy 2 Year Warranty Program on all components
  • Environmentally sound 134a refrigerant
  • CFC free urethane foam in cabinet and doors
  • Magnetic door gaskets for positive seal
  • Stainless fasteners & hinges used throughout
  • Maintenance friendly & efficient static condenser
  • Low battery protection to help prevent full discharge of batteries
  • Strongest mounting flanges in the industry
Options:
  • Standard with Right Hand Hinge Configuration. Left Hand Hinge available on request at no extra charge. The hinge side is user configurable, however, let us know your preference at the time of order and we can have the change made at factory prior to shipping/pick-up.
  • White or Stainless Steel Door Panel (SS is standard)
  • Right or left hand door swing (right is standard)


Specifications

Volume 162 Litres (5.8 cu.ft. ) volume


Cut Out Dimensions 805 mm Height
587 mm Width

560 to 605 mm Depth* (measured from the back face of the mounting flange)

Overall dimensions (Including flange)
840 mm Height
622 mm Width

618 mm Depth (including door and latch handle)



*Note: This freezer has an adjustable frame for depth. With the flange adjustment forward the door is flush with the flange and depth behind is 605mm or when adjusted back the door is forward of the flange and depth is reduced to 560mm behind the  flange.

The frame has a 12mm flange on the left and right side and a 5mm flange on the bottom with a 13mm flange on the top. By removing the 12 frame screws you can also rotate the mounting flange so the top is 5mm and the bottom is 13mm. This allows for lower counter height installations.
