Nova Kool F1200DC 12-24 Volt 33 Litre Freezer - Single Door


Nova Kool F1200DC 12-24 Volt 33 Litre Freezer - Single Door - Suitable for Boats-Caravans-Motorhomes and RVs (F1200)



Nova Kool F1200 - 33 Litre Freezer

12-24 Volts Fits In Some Ice Maker Cut Outs

Single Black Door Panel and Black Frame

Suitable for Boats-Caravans-Motorhomes and RVs (F1200)

We ship Australia wide - Ask us for a quote!

The F1200 is designed to replace some common Ice machine cut outs.



Cut-out dimensions suit replacement of many common ice makers including the Raritan 85 & 85E, Uline BI-95 BTP ice makers etc. This unit does not make ice, it is a replacement where the ice machine is no longer required but more freezer space is needed.

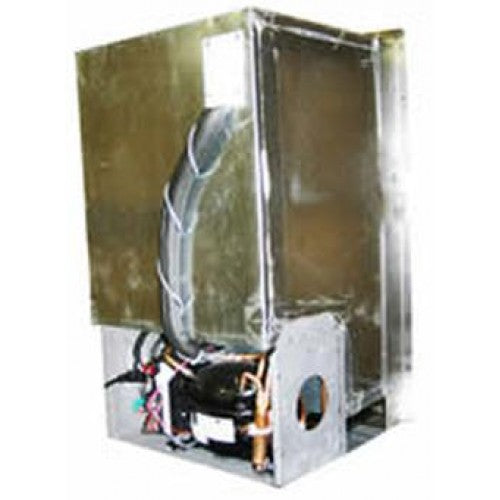

Nova Kool Freezers are equipped with a highly efficient variable speed Danfoss BD series compressor (fan included) that is designed to run well even at very high ambient temperatures and At angles up to 30° off level. Power draw is approximately 2.4 amps when running: average power use will vary depending on ambient temp. how often the door is opened etc. but you can expect ~ 30 amp hours per day at 30°C ambient temperature.



Volume

  • 33 Liters Total Internal Volume
  • 33 litres of freezer space
Cut Out Dimensions
  • 628 mm (H) X 355 mm (W) x 368 mm (D)
  • This model has a black flange included.

Features:

  • Positive latch system
  • Shelves are a powder coated wire for durability
  • Reversible door swing
  • Replaceable door panels for a custom finish to your interior
  • Backed with Nova*Kool's Easy 2 Year Warranty Program on all components
  • Environmentally sound 134a refrigerant
  • CFC free urethane foam in cabinet and doors
  • Magnetic door gaskets for positive seal
  • Stainless fasteners & hinges used throughout
  • Maintenance friendly & efficient static condenser
  • Low battery protection to help prevent full discharge of batteries
  • Strongest mounting flanges in the industry
  • DC only: 12 and 24 V DC is standard.
Options:
  • Standard with Right Hand Hinge Configuration. Left Hand Hinge available on request at no extra charge. The hinge side is user configurable, however, let us know your preference at the time of order and we can have the change made at factory prior to shipping/pick-up.
  • White or Stainless Steel Door Panel (black is standard)
  • Right or left hand door swing (right is standard)



    Specifications

    Volume 33 liters (1.2 cu.ft.) volume 33 total litres internal Volume: All freezer space.
    Cut Out Dimensions 628 mm Height 355 mm Width 368 mm Depth

    Overall dimensions (Including flange)
    648 mm Height
    384 mm Width

    416 mm Depth (including door and latch handle)
