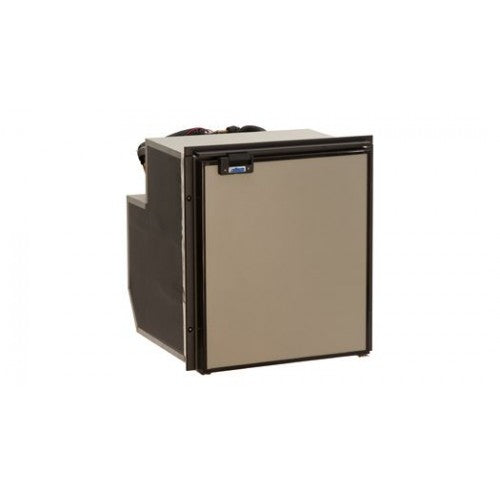

Isotherm CR65 Cruise Grey Line Fridge/Freezer - 12 or 24 Volt - 61L Marine Fridge with 4L Freezer - Grey Door - 381673 (C065RBABG11111AA)

Isotherm CR49 Cruise Grey Line Fridge/Freezer- 12 or 24 Volt - 46L Marine Fridge with 4L Freezer - Grey Door - 381655 (C049RBABG11111AA)



Isotherm Cruise 12 volt - 24 volt, cabinet style refrigerators. These models feature fan cooled compressors

Features:

  • 3mm front door panel is removable to allow fitting of different panel styles to match other interior finishes
  • * Not Including Mounting Flange
  • Large moulded corners for ease of cleaning
  • Hermetic fan cooled compressor
  • Hook to hold door slightly open when not in use
  • Safety locking device on door for rough conditions
  • One piece polished plastic inner lining
  • Magnetic rubber door seal
  • Utilises R134A ozone friendly refrigeration gas

Reversible Door Hinge:

The doors on the refrigerators are as standard - mounted with the hinges to the right hand side. The door can be hinged to the left by means of changing position of the upper and lower hinge fittings. The door lock must also be moved to the other side. On the CR 65, 85 & 130 both the upper and lower hinge fittings has to be taken of and mounted on the new side instead. The lower door support is also moved to the new side. The upper hinge pin is threaded into the top part above the door, unscrew the top part to take off the door and move the pin to the other side.

Electrical Connections:

When connecting the refrigerator electrically, it is important that following points are considered:
Always use cables of suffi cient area. The area in the following table should be regarded as a minimum. * Always connect the refrigerator directly to the battery or to the battery main switch on the plus circuit. Do not connect it via the boats own control panel or other diversions as this can cause a voltage drop in the power supply. Use the included fuse holder with a 15A fuse. Use 7.5A fuse in a 24 volt system. The fuse shall be mounted on the plus cable.
*Connect the red cable to the positive (+) terminal and the black to the negative (-) terminal. Use tab type terminals for the connection to the electronic unit and other cable connectors of sufficient size for the cable size selected. * Do not connect the refrigerator direct to a battery charger. The battery charger must be connected to the battery.

Battery Voltage (Shut Down) Sensor:

To protect the batteries from becoming completely discharged, a battery voltage sensor switches off the compressor automatically at the following levels:
