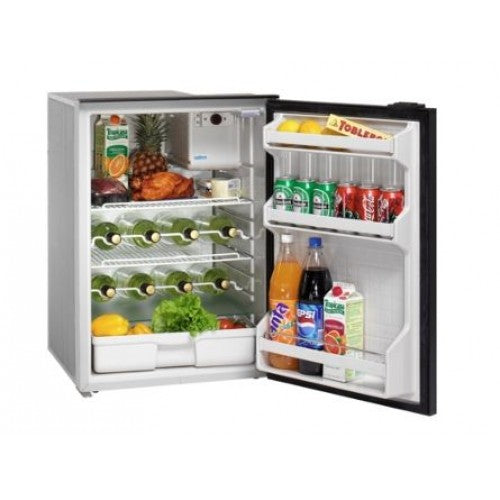

Isotherm CR130 DRINK Inox Stainless Steel Matched Drinks Fridge - 12 or 24 Volts - 130 Litre Fridge Only - 1130BA1MK (381711)

Isotherm CR130 DRINK Inox Stainless Steel Matched Drinks Fridge - 12 or 24 Volts - 130 Litre Fridge Only - 1130BA1MK (381711)

The Isotherm Cruise 130 Drink INOX is a special version of the CR130 providing the customer with an extra space for drinks instead of the freezer,

It is equipped with interior light ans fan for cool air distribution inside the fridge

Isotherm Cruise 130 Inox Stainless Steel Refrigerator with an overall volume of 130L.

These 12 volt - 24 volt flush mounted cabinet style refrigerators with stainless steel doors & trims, are well suited for the marine environment as well as Caravans, Motorhomes and RVs,

The Isotherm CR130 is a traditional fridge three shelves and a vegetable bin. The door has three shelves and it is equipped with an inner light and a fan cooled compressor.

Features:

  • Food preparation compliant stainless steel case
  • Flush mounted - no protrusion into galley area
  • Positive, flush closing mechanism
  • Hermetic fan cooled compressor
  • Contoured single piece plastic liner
  • Adjustable shelves Internal light
  • Low voltage cut off
  • Radio interference suppression
  • Internal rotary thermostat
  • Utilises R134A ozone friendly refrigeration gas



Electrical Connections:

When connecting the refrigerator electrically, it is important that following points are considered:
Always use cables of suffi cient area. The area in the following table should be regarded as a minimum. * Always connect the refrigerator directly to the battery or to the battery main switch on the plus circuit. Do not connect it via the boats own control panel or other diversions as this can cause a voltage drop in the power supply. Use the included fuse holder with a 15A fuse. Use 7.5A fuse in a 24 volt system. The fuse shall be mounted on the plus cable.
*Connect the red cable to the positive (+) terminal and the black to the negative (-) terminal. Use tab type terminals for the connection to the electronic unit and other cable connectors of sufficient size for the cable size selected. * Do not connect the refrigerator direct to a battery charger. The battery charger must be connected to the battery.

Battery Voltage (Shut Down) Sensor:

To protect the batteries from becoming completely discharged, a battery voltage sensor switches off the compressor automatically at the following levels:
