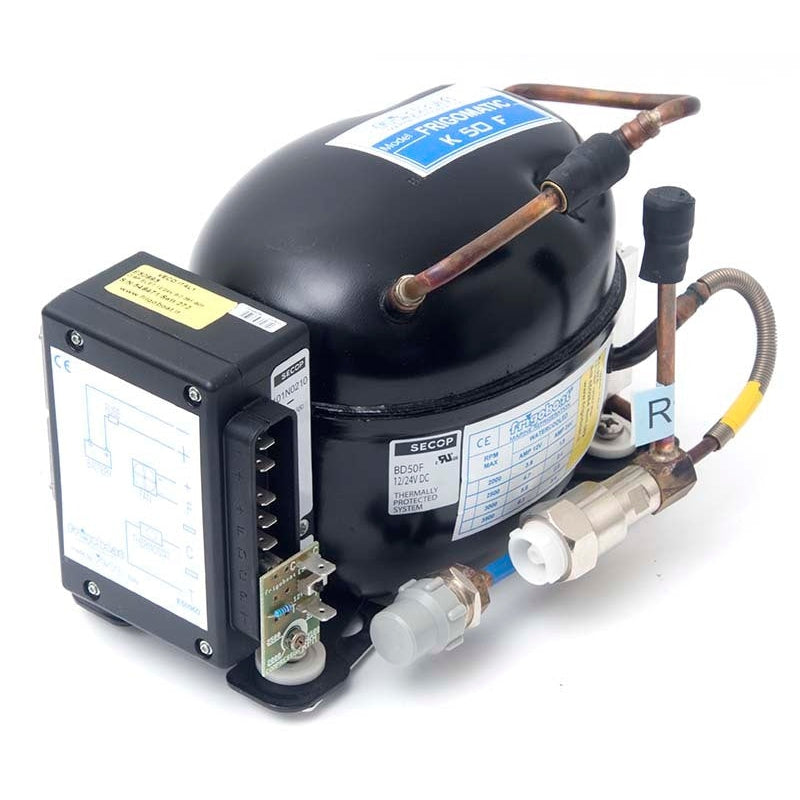

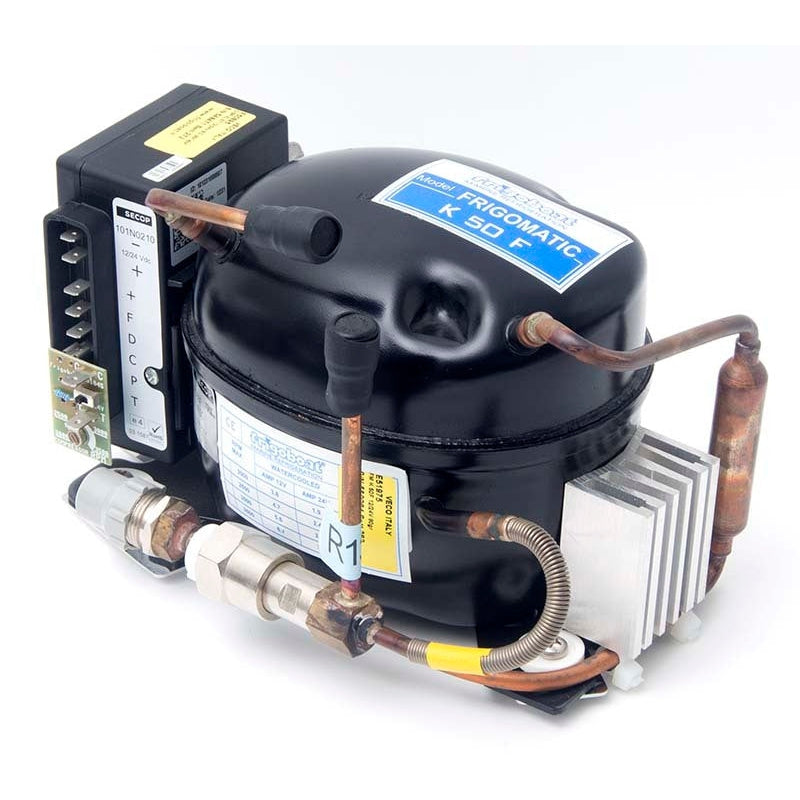

Frigomatic K 50F 12/24V 80Gr Keel Cooled Dissipator - Veco

Frigomatic K 50F 12/24V 80Gr Keel Cooled Dissipator - Veco

Veco keel cooled refrigeration system uses Danfoss BD50 12 volt / 24 volt DC compressor. Veco keel cooler is more energy-efficient than air-cooled systems.



Keel cooler eliminates the need of an independent seawater pump.

  • ​Compressor is the only moving part.
  • Danfoss compressor of the latest generation with electrical consumption 25% lower compared to other compressor concepts.
  • Precharged system with Frigoboat self-sealing couplings.
  • Configurations with evaporators for fridges up to 380 litres and freezers up to 100 litres.
  • Automatic battery protection.



Technical Specifications

Compressor Speed (RPM) Refrigerating Capacity (Btu/h) Current Consumption (A) Refrigerator max. volume (L) Freezer max. volume (L)
2000 369 4 180 NA
2500 472 4.7 250 NA
3000 560 5.7 340 80
3500 650 6.8 380 100



Power Cable Sizing

To ensure correct start and operating conditions, the following cable dimensions must be observed:

Cross Section AWG Max Length (12V) Max Length (24V)
2.5 mm2 12 2.5 m 5 m
4 mm2 12 4 m 8 m
mm2 10 6 m 12 m
10 mm2 8 10 m 20 m
