Dometic Cold Machine DIY Kit CU-86 + VD-08 180/55L

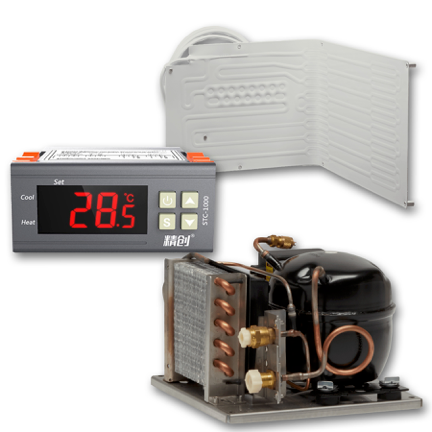

This Dometic Cold Machine  DIY Kit is made up of the CU-86 cooling unit, VD-08 angle evaporator, and digital thermostat. 250 Litre fridge 70 litre freezer

NOTE: THIS KIT CAN BE CHANGED TO A MECHANICAL THERMOSTAT IF REQUIRED

Dometic ColdMachine CU-86 – Cooling Unit (SKU 9105306599)

A versatile compressor-based cooling unit that provides reliable performance for custom refrigeration builds in marine, RV, van conversion, and off-grid applications. Designed in a vertical format and compatible with a range of Series 80 evaporators, the CU-86 delivers efficient cooling where you need it most.

Specifications:

• Model / SKU: CU-86 / 9105306599
• Product Type: Cooling unit (compressor)
• Cooling Capacity: Up to 180 L refrigeration or ~55 L freezer (with direct evaporator)
• Voltage: 12 V / 24 V DC
• Rated Input Power: ~45 W (DC)
• Refrigerant Type: R134a (pre-charged, ~45 g)
• CO₂ Equivalent: ~0.064 t (GWP 1430)
• Dimensions (W × H × D): 220 × 230 × 177 mm
• Net Weight: ~6.5 kg
• Climate Class: T (EN 62552)

Dometic ColdMachine VD-08 – Angle Evaporator

A corner-style evaporator designed to pair with Series 80 units like the CU-84. The VD-08 is suitable for fridge compartments up to roughly 180 L and can be mounted vertically or horizontally. It includes an adjustable external thermostat and pre-charged refrigerant for simplified setup.

Specifications:

• Model / SKU: VD-08 / 9105306607
• Compatible With: Series 80 cooling units (CU-84, CU-85, CU-86)
• Voltage: 12 V / 24 V DC
• Cooling Capacity: up to ~180 L
• Power Input: ~60 W
• Refrigerant Type: R134a (pre-charged, 15 g)
• Dimensions (W × H × D): 465 × 270 × 360 mm
• Weight: ~1 kg
• Features: Angle evaporator design, external thermostat with LED indicator, self-sealing valve couplings
