DC Fridge DIY Kit CU86 + VD05 100/25L

The DC Fridge CU86 + VD05 is a DIY refrigeration kit for a 100L fridge or 25L freezer, pairing a cooling unit with an evaporator plate for boats, caravans and RVs.

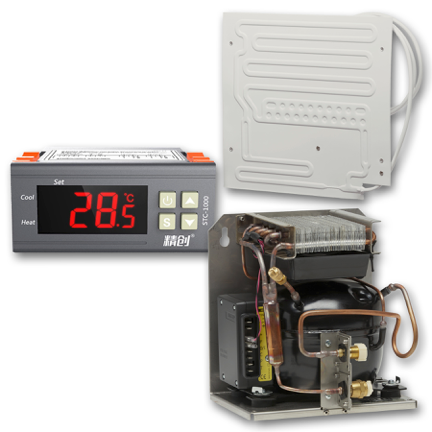

This Dometic Cold Machine DIY Kit is made up of the CU-86 cooling unit, VD-05 plate evaporator, and digital thermostat.

NOTE: THIS KIT CAN BE CHANGED TO A MECHANICAL THERMOSTAT IF REQUIRED

Specifications

• Cooling Capacity: Up to 100 L refrigeration or ~25 L freezer (with direct evaporator)
• Voltage: 12 V / 24 V DC
• Rated Input Power: ~45 W (DC)
• Refrigerant Type: R134a (pre-charged, ~45 g)
• CO₂ Equivalent: ~0.064 t (GWP 1430)
• Dimensions (W × H × D): 220 × 230 × 177 mm
• Net Weight: ~6.5 kg
• Climate Class: T (EN 62552)

Dometic ColdMachine VD-05 Plate Evaporator: Slim, versatile evaporator plate compatible with Series 80 systems like the CU-84. Designed for fridge compartments up to ~170 L, it installs vertically or horizontally and comes with an external thermostat and quick-connect fittings for precise temperature control.

• Cooling Capacity: up to ~100 L (with 50 mm insulation)
• Dimensions (W × H × D): 375 × 350 × 25 mm
• Weight: ~1.5 kg

Dometic ColdMachine CU-86 – Cooling Unit (SKU 9105306599)

A versatile compressor-based cooling unit that provides reliable performance for custom refrigeration builds in marine, RV, van conversion, and off-grid applications. Designed in a vertical format and compatible with a range of Series 80 evaporators, the CU-86 delivers efficient cooling where you need it most.
