Dometic Cold Machine DIY Kit CU-85 + VD-08 180/55L

This Dometic Cold Machine  DIY Kit is made up of the CU-85 cooling unit, VD-08 angle evaporator, and digital thermostat.

NOTE: THIS KIT CAN BE CHANGED TO A MECHANICAL THERMOSTAT IF REQUIRED

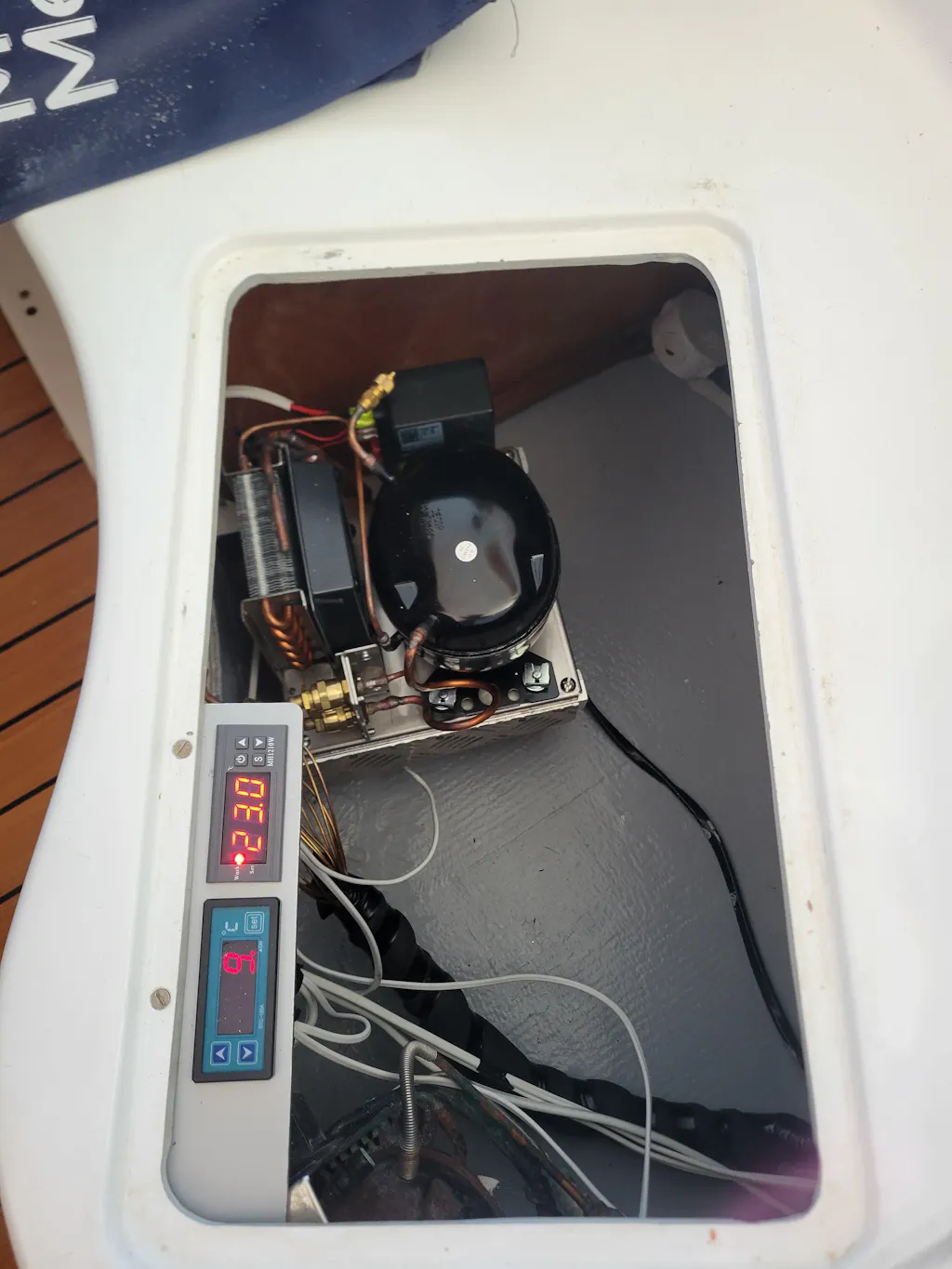

Dometic ColdMachine CU-85 – Cooling Unit (SKU 9105306598)

A versatile compressor-based cooling unit that serves as the heart of custom refrigeration solutions for marine, RV, van conversion, and off-grid projects. Designed for reliable performance and flexible compatibility with a range of evaporators, the CU-85 delivers professional-grade cooling in a compact package.

Specifications:

• Model / SKU: CU-85 / 9105306598
• Product Type: Cooling unit (compressor)
• Voltage: 12 V / 24 V DC
• Rated Input Power (DC): ~45 W
• Refrigerant: R134a (contains fluorinated greenhouse gases; GWP 1430)
• Refrigerant Amount: ~45 g
• CO₂ Equivalent: ~0.064 t
• Cooling Capacity: Up to 180 L (refrigeration) or 55 L (freezer with direct evaporator)
• Dimensions (W × H × D): 220 × 160 × 220 mm
• Net Weight: ~6 kg
• Climate Class: T (EN 62552)

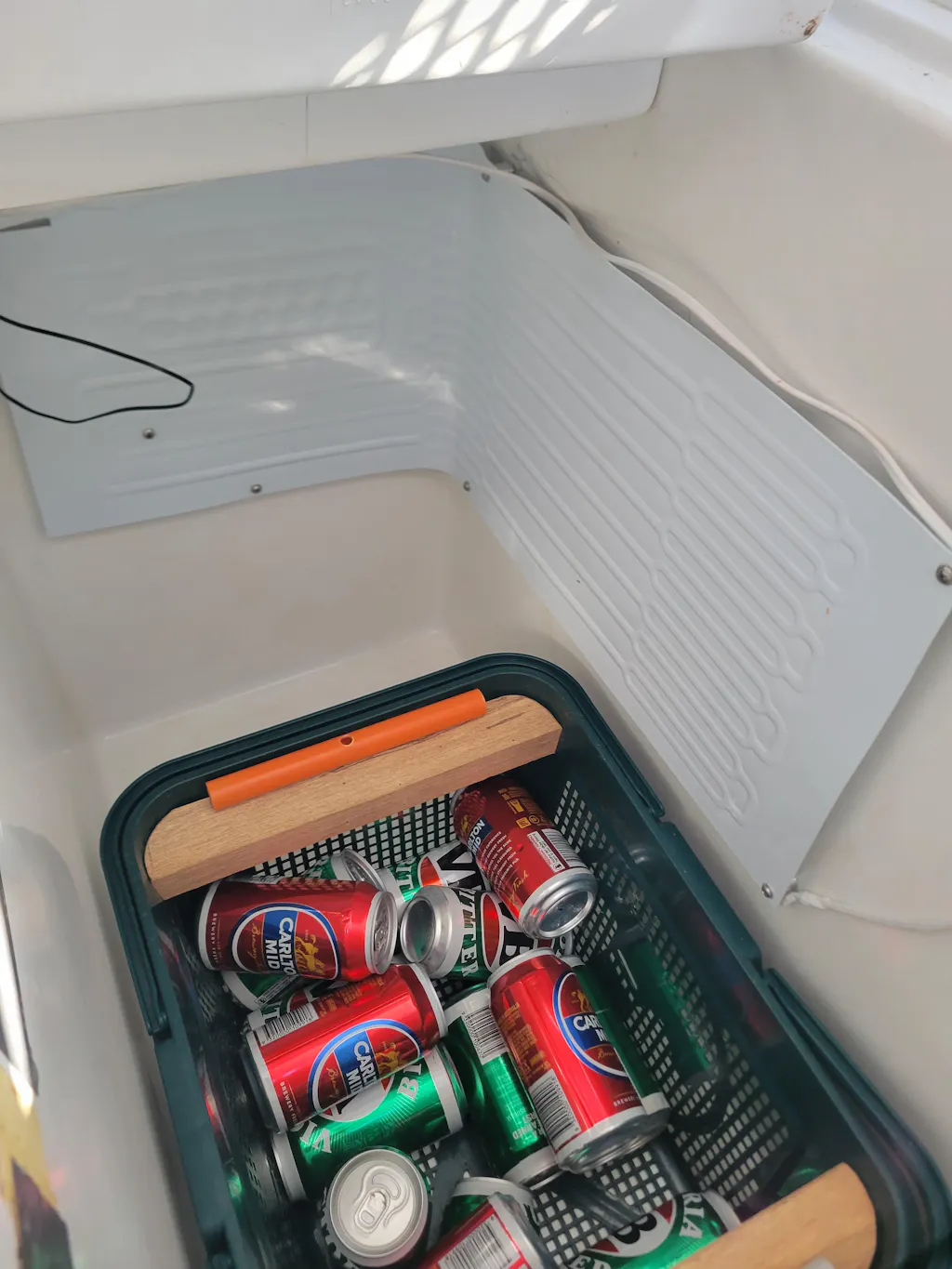

Dometic ColdMachine VD-08 – Angle Evaporator

A corner-style evaporator designed to pair with Series 80 units like the CU-84. The VD-08 is suitable for fridge compartments up to roughly 180 L and can be mounted vertically or horizontally. It includes an adjustable external thermostat and pre-charged refrigerant for simplified setup.

Specifications:

• Model / SKU: VD-08 / 9105306607
• Compatible With: Series 80 cooling units (CU-84, CU-85, CU-86)
• Voltage: 12 V / 24 V DC
• Cooling Capacity: up to ~180 L
• Power Input: ~60 W
• Refrigerant Type: R134a (pre-charged, 15 g)
• Dimensions (W × H × D): 465 × 270 × 360 mm
• Weight: ~2 kg
• Features: Angle evaporator design, external thermostat with LED indicator, self-sealing valve couplings
