Dometic Cold Machine DIY Kit CU-84 + VD-18 150/45L

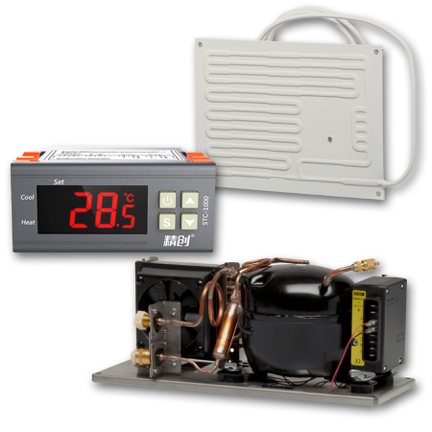

This Dometic Cold Machine  DIY Kit is made up of the CU-84 cooling unit, VD-18 plate evaporator, and digital thermostat.

NOTE: THIS KIT CAN BE CHANGED TO A MECHANICAL THERMOSTAT IF REQUIRED

Dometic ColdMachine CU-84 Cooling Unit (12/24 V DC) — Powerful compressor-based cooling designed for medium-sized refrigerators up to ~250 L. Engineered for quiet, economical operation and durability in warm conditions, this horizontal-design unit includes pre-charged refrigerant and self-sealing valve couplings for easier installation.

Specifications:

• Model / SKU: CU-84 / 9105306597
• Voltage: 12 V / 24 V DC
• Cooling Capacity: up to approx. 150 L
• Freezer Capacity: up to approx. 45 L (with direct evaporator)
• Power Consumption: ~45 W
• Refrigerant Type: R134a (pre-charged)
• Dimensions (W × H × D): 386 × 160 × 130 mm
• Weight: ~6 kg
• Features: Corrosion-resistant mounting plate, quiet operation, compatible with multiple evaporators (incl. VD-05)




Dometic ColdMachine VD-18 – Plate Evaporator

A versatile plate-type evaporator designed to work with Series 80 cooling units like the CU-84. The VD-18 can be mounted horizontally or vertically and includes an external thermostat and LED indicator for precise temperature control. It’s ideal for fridge compartments up to around 150 L with 50 mm insulation.

Specifications:

• Model / SKU: VD-18 / 9105306614
• Compatible With: Series 80 cooling units (e.g., CU-84)
• Voltage: 12 V / 24 V DC
• Cooling Capacity: ~150 L with 50 mm PU insulation
• Refrigerant: R134a (with ~15 g refrigerant)
• Dimensions (W × H × D): 375 × 250 × 25 mm
• Weight: ~1.5 kg
• Features: External adjustable thermostat with LED indicator, self-sealing valve couplings, suitable for horizontal/vertical installation
