Dometic Cold Machine DIY Kit CU-84 + VD-08 180/55L

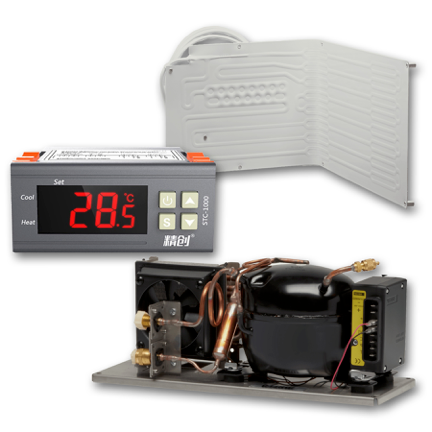

This Dometic Cold Machine  DIY Kit is made up of the CU-84 cooling unit, VD-08 angle evaporator, and digital thermostat.

Dometic ColdMachine CU-84 Cooling Unit (12/24 V DC) — Powerful compressor-based cooling designed for medium-sized refrigerators up to ~180 L. Engineered for quiet, economical operation and durability in warm conditions, this horizontal-design unit includes pre-charged refrigerant and self-sealing valve couplings for easier installation.

Specifications:

• Model / SKU: CU-84 / 9105306597
• Voltage: 12 V / 24 V DC
• Cooling Capacity: up to approx. 180 L
• Freezer Capacity: up to approx. 55 L (with direct evaporator)
• Power Consumption: ~45 W
• Refrigerant Type: R134a (pre-charged)
• Dimensions (W × H × D): 386 × 160 × 130 mm
• Weight: ~6 kg
• Features: Corrosion-resistant mounting plate, quiet operation, compatible with multiple evaporators (incl. VD-05)



Dometic ColdMachine VD-08 – Angle Evaporator

A corner-style evaporator designed to pair with Series 80 units like the CU-84. The VD-08 is suitable for fridge compartments up to roughly 180 L and can be mounted vertically or horizontally. It includes an adjustable external thermostat and pre-charged refrigerant for simplified setup.

Specifications:

• Model / SKU: VD-08 / 9105306607
• Compatible With: Series 80 cooling units (CU-84, CU-85, CU-86)
• Voltage: 12 V / 24 V DC
• Cooling Capacity: up to ~180 L
• Power Input: ~60 W
• Refrigerant Type: R134a (pre-charged, 15 g)
• Dimensions (W × H × D): 465 × 270 × 360 mm
• Weight: ~2 kg
• Features: Angle evaporator design, external thermostat with LED indicator, self-sealing valve couplings
