Dometic Cold Machine DIY Kit CU-84 + VD-05 100/35L

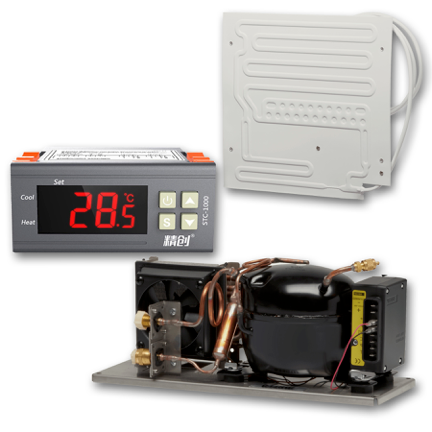

This Dometic Cold Machine  DIY Kit is made up of the CU-84 cooling unit, VD-05 evaporator cooling plate, and digital thermostat.

NOTE: THIS KIT CAN BE CHANGED TO A MECHANICAL THERMOSTAT IF REQUIRED

Dometic ColdMachine CU-84 Cooling Unit (12/24 V DC) — Powerful compressor-based cooling designed for medium-sized refrigerators up to ~100 L. Engineered for quiet, economical operation and durability in warm conditions, this horizontal-design unit includes pre-charged refrigerant and self-sealing valve couplings for easier installation.

Specifications:

• Model / SKU: CU-84 / 9105306597
• Voltage: 12 V / 24 V DC
• Cooling Capacity: up to approx. 100 L
• Freezer Capacity: up to approx. 35L (with direct evaporator)
• Power Consumption: ~45 W
• Refrigerant Type: R134a (pre-charged)
• Dimensions (W × H × D): 386 × 160 × 130 mm
• Weight: ~6 kg
• Features: Corrosion-resistant mounting plate, quiet operation, compatible with multiple evaporators (incl. VD-05)

Dometic ColdMachine VD-05 Plate Evaporator — Slim, versatile evaporator plate compatible with Series 80 systems like the CU-84. Designed for fridge compartments up to ~170 L, it installs vertically or horizontally and comes with an external thermostat and quick-connect fittings for precise temperature control.

Specifications:

• Model / SKU: VD-05 / 9105306605
• Compatible With: Series 80 cooling units (e.g., CU-84)
• Voltage: 12 V / 24 V DC
• Cooling Capacity: up to ~170 L (with 50 mm insulation)
• Dimensions (W × H × D): 375 × 350 × 25 mm
• Weight: ~1.5 kg
• Features: External thermostat with LED indicator, self-sealing valve couplings for easy in
