416 mm Depth (including door and latch handle)
$2,019.00

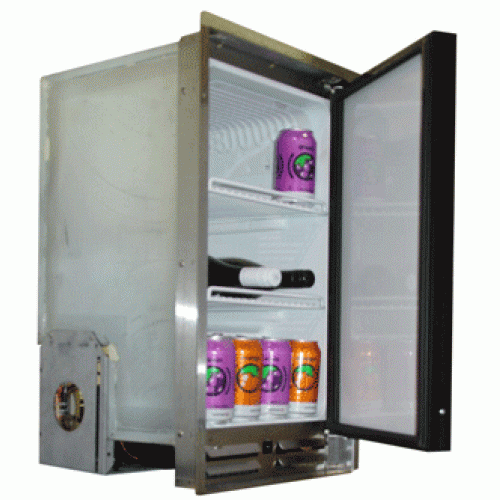

Nova Kool - 33 Litre Fridge (R1200DC)
Single Door with Stainless Steel Frame (Moveable) and Formica Brushed Stainless Steel Look Door Panel
All Fridge - No Freezer Compartment with Genuine Danfoss BD35F Compressor
Cut Out Dimensions: 628 H X 355 W x 368* to 406* D (mm)
We can ship Australia wide - ask us for a quote!
The R1200 is designed to replace some common Ice machine cut outs.
Cut-out dimensions suit replacement of many common ice makers including the Raritan 85 & 85E, Uline BI-95 BTP ice makers etc. This unit does not make ice, it is a replacement where the ice machine is no longer required but more beverage space is needed. The R1200 is designed to work as a beverage refrigerator, and will hold bottles of wine laying down. With no freezer compartment, the space is maximized as all refrigerator. The frame is brushed stainless, and the flange is movable to allow for shallower depths. If you have lots of room behind, you can have a flush door mount. If depth is at a premium, the flange will move back and the door will no longer be flush. This unit is front ventilating, so no relief holes need to be cut out of your enclosure. When the compressor is running, the R1200 draws only 2.4 amps @ 12 Volts DC - less than 0.5 amps on the 120VAC option. All Nova Kool Refrigerators and Freezers are equipped with a highly efficient variable speed Danfoss BD series compressor that is designed to run even while you are listed at a 30° angle. Average power use will vary depending on ambient temperature and how often the door is opened etc. but you can expect the R1200 to use less than 25 amp hours per day at 30C ambient temperature.

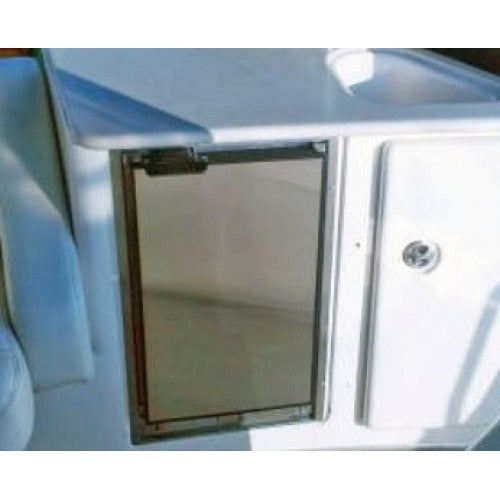

*This model has an adjustable stainless steel flange included. The flange can be moved to allow for shallow cut-outs or left flush as shown in the images to left.
Volume:
Cut Out Dimensions:
Features:
Options:
Specifications
Volume |
33 liters (1.2 cu.ft.) volume |
33 total litres internal Volume: All fridge space, no freezer box |
|
Cut Out Dimensions |
628 mm Height |
355 mm Width |
368 to 406 mm Depth (flange is adjustable, cut-out depth is measured from the back face of the mounting flange) |
Overall dimensions (Including flange) |
648 mm Height |
384 mm Width |
416 mm Depth (including door and latch handle) |
Downloads:
